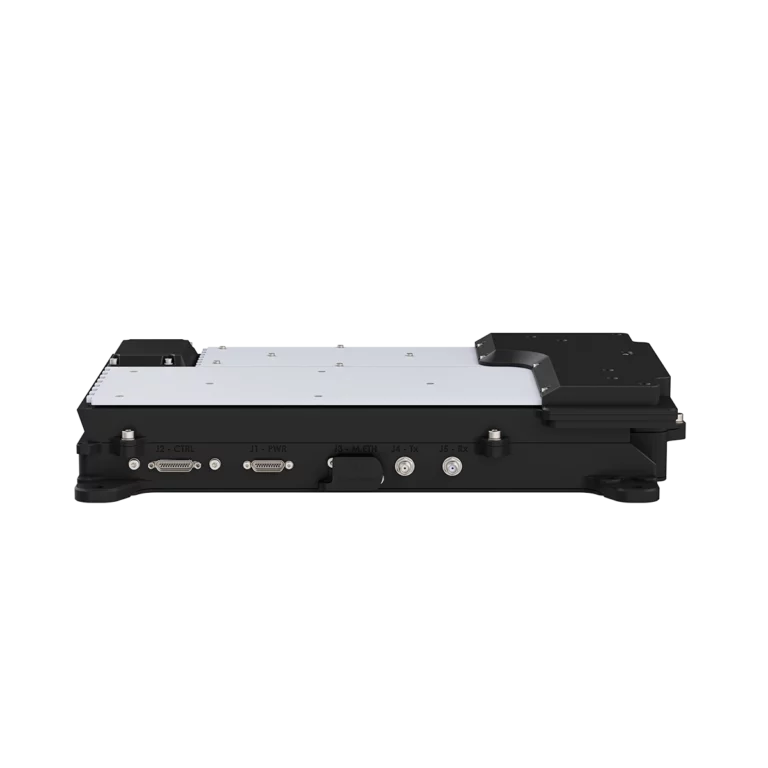

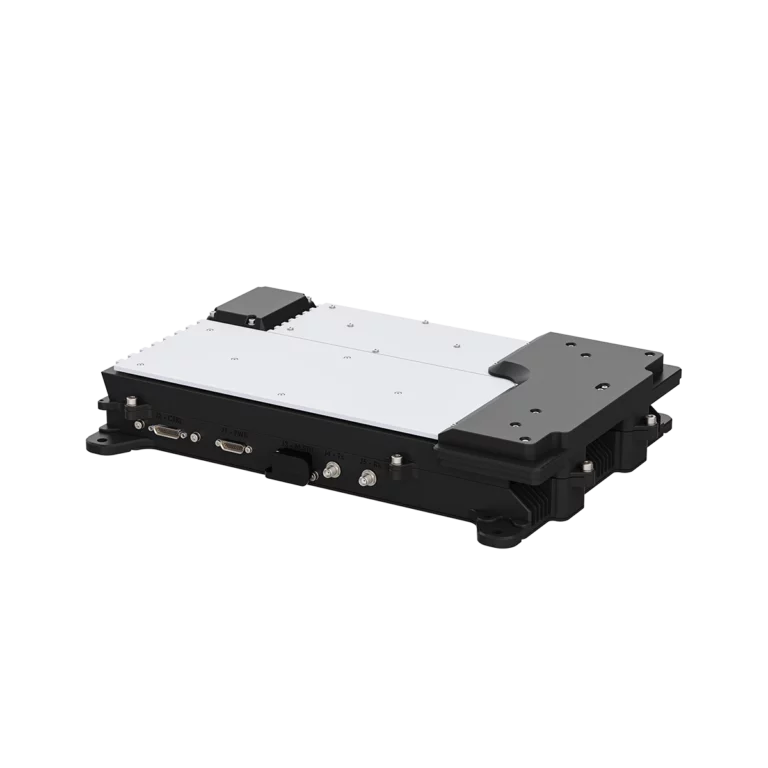

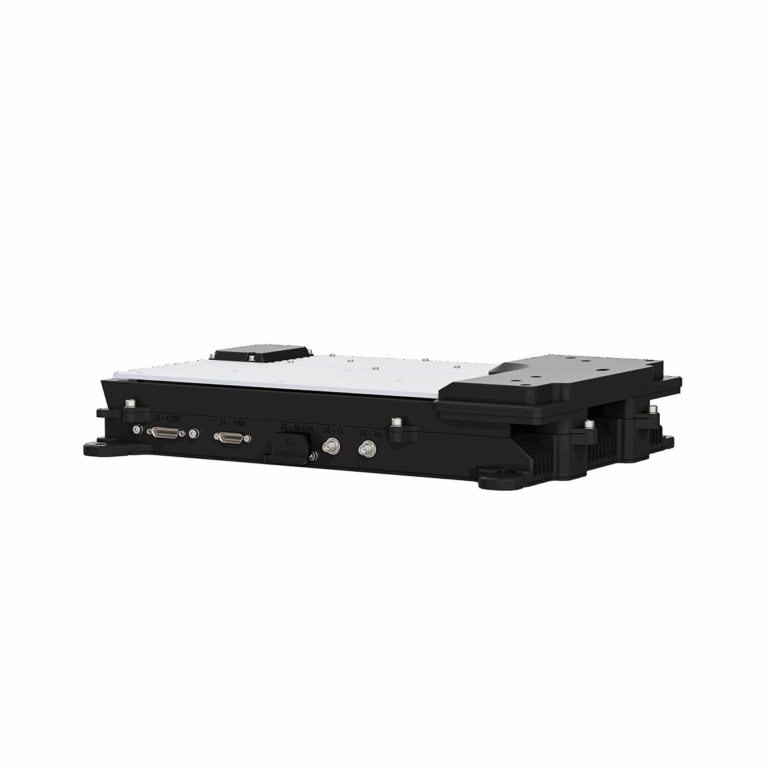

The Aero Blade M NANO Ka is a low profile antenna, ensuring top-tier
communication in all airborne applications. This fully electronically
steered antenna operates without moving parts, eliminating the need
for calibration. This ensures long-term reliability and significantly
reduces maintenance costs.
Designed to support transmit & receive (RX -Dual Beam) functions for
both GEO, MEO and LEO satellites. Its advanced design allows it to
switch between these satellites, ensuring near seamless satellite
coverage anywhere, anytime.
Aero Blade NANO M Ka is modem agnostic and supports the use of any external
modem, including connections to regional GEO networks, giving operators
flexibility in network selection and system configuration.
Aero Blade integrates everything needed for seamless SATCOM operation, including a modem, Antenna Control Unit (AMU), Frequency Converter Units (FCU), tracking sensors, a full RF front end, and integrated modems for LEO and GEO—minimizing space and simplifying installation.
With an electronically steered design, Aero Blade eliminates mechanical components, reducing maintenance needs, improving reliability, and ensuring long-term performance in demanding airborne environments.
Designed for ultimate flexibility, Aero Blade supports near-seamless transitions between LEO & GEO and LEO & LEO constellations, providing uninterrupted high-speed connectivity in dynamic flight conditions.
Ensuring uninterrupted service, Aero Blade executes satellite handovers in milliseconds, delivering low-latency connectivity for mission-critical and high-data-rate applications.
With a streamlined design and easy installation, Aero Blade reduces downtime and eliminates the need for complex calibrations, enabling fast deployment and effortless operation.
| RF Performance | Ka Band |
|---|---|
| Tx Frequency | 27.5 – 31 GHz |
| Rx Frequency | 17.7 – 21.2 GHz |
| Polarization | Circular (Crosspol and Copol) Electronically configurable |
| Max EIRP | 44 dBW |
| Max G/T | 7 dB / K |
| Azimuth | Continues coverage over full 360° |
| Elevation | 15° to 90° Electronically Steerable Antenna |
| Control Technique | Combined IM U/RSSI/GPS |
| Initial Acquisition Time | <30 sec |
| Re-Acquisition time | <100ms |
| Management | Ethernet |
| Power Input | 24-48 VDC (28Vdc) |
| Power Consumption | 250 W |
| Weight without fans | 2.3 Kg (5 lb.) |
| System Size without fans (W/H/L) | 23 x 5.7 x 32 cm (9 x 2.2 x 12.5”) |
