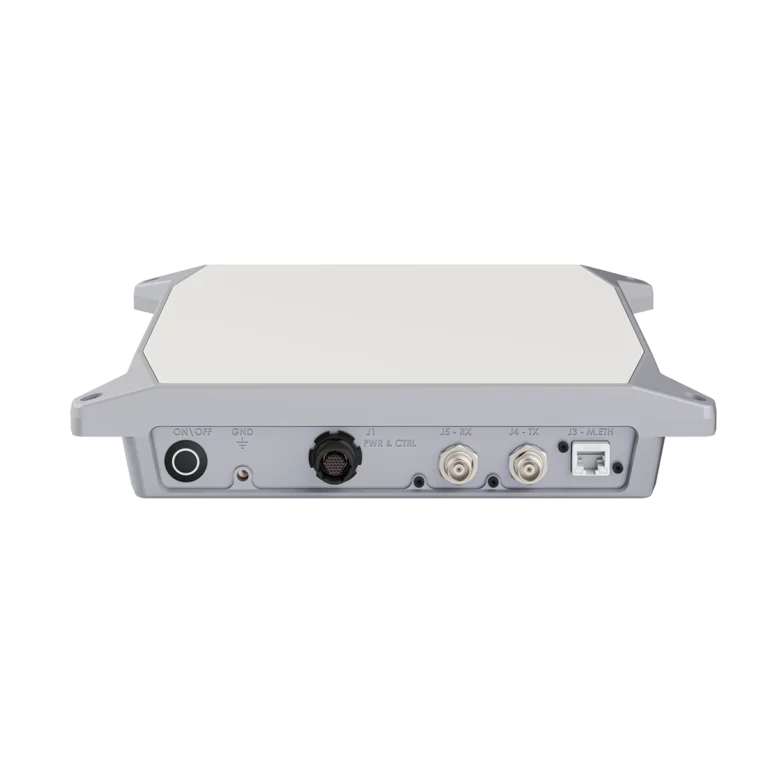

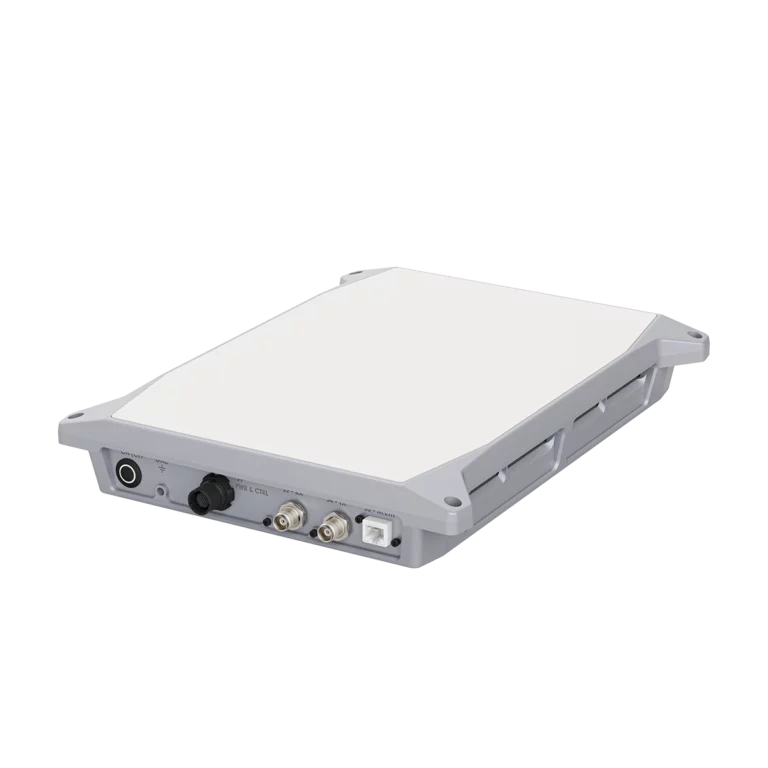

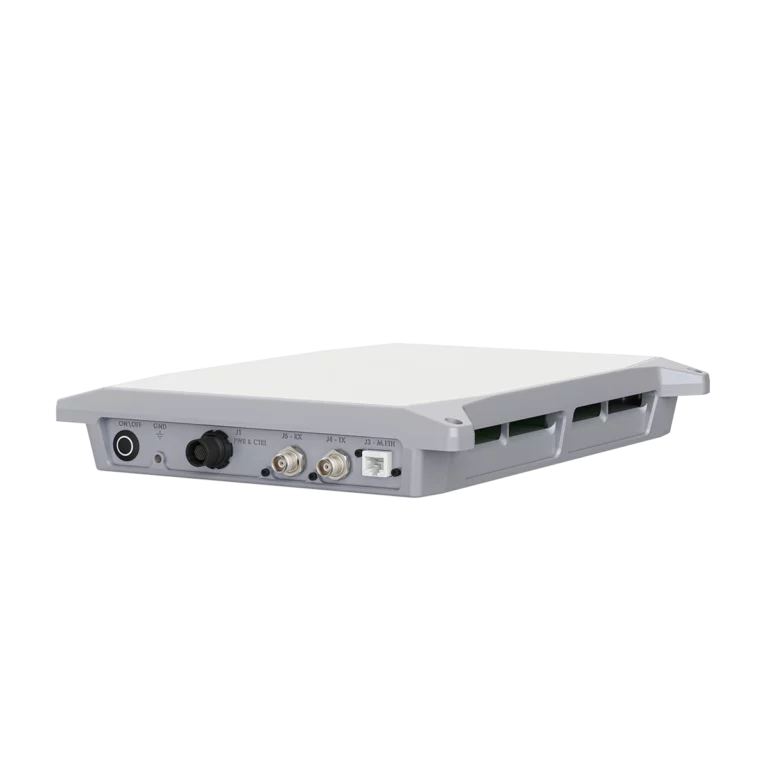

The Sling Blade NANO LM (land and maritime) Ka, part of the ESA Blade family, brings
high-performance satellite communication to the field in a highly compact form.
With excellent antenna directivity and gain, it ensures powerful transmission and
reliable reception even in challenging environments.
Sling Blade NANO LM Ka is modem agnostic and supports the use of any external modem, including connections to regional GEO networks, giving operators flexibility in network selection and system configuration.
FOR WHOM?
Beyond Visual Line of Sight (BVLOS) Communications: Facilitates advanced
communication capabilities.
Real-Time Control and Navigation: Enables immediate control of aircraft and
precision navigation.
Health Monitoring and Live Video: Offers real-time health monitoring and access to
near-live video and imagery.
Dynamic Rerouting: Adapts to changing conditions with dynamic aircraft rerouting
capabilities.
Built to withstand harsh climates and scenarios.
Electronically steered antenna eliminates moving parts, enhancing longevity, and reducing costs.
Wide band Ka frequency for operation on multiple constellations.
Low SWaP suitable for field operation.
Facilitates Voice over Internet Protocol (VoIP) applications in remote and inaccessible areas, ensuring seamless communication.
| RF Performance | Ka band |
|---|---|
| Tx Frequency | 27.5 – 31 GHz |
| Rx Frequency | 17.7 – 21.2 GHz |
| Polarization | Circular (Crosspol and Copol) Electronically configurable |
| Max EIRP | 44 dBW |
| Max G/T | 7 dB / K |
| Azimuth | Continuous coverage over full 360° |
| Elevation | Beam steering range 20° to 90° |
| Control Technique | Combined IMU / RSSI / GPS (Optional) |
| Initial Acquisition Time | <30 sec |
| Re-Acquisition time | <100ms |
| Management | Ethernet |
| Power Input | 24-48 VDC |
| Power Consumption | 250 Watt |
| Interfaces | Ethernet, USB, RS232 |
| Weight | 4.3 kg (9.4 lb.) |
| System Size (W/H/L) | 36.1 x 5.1 x 28 cm (14.2 x 2 x 11”) |
