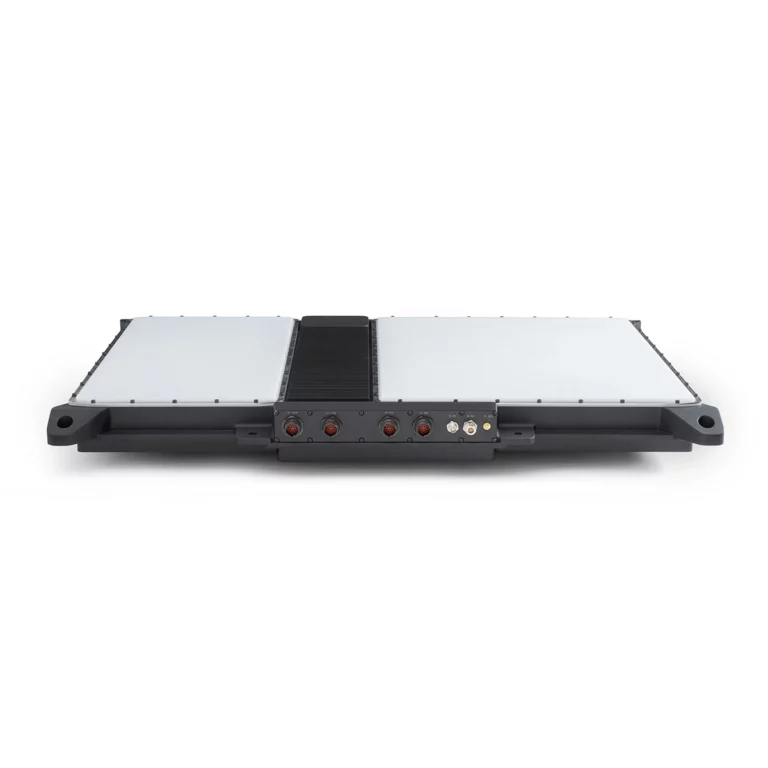

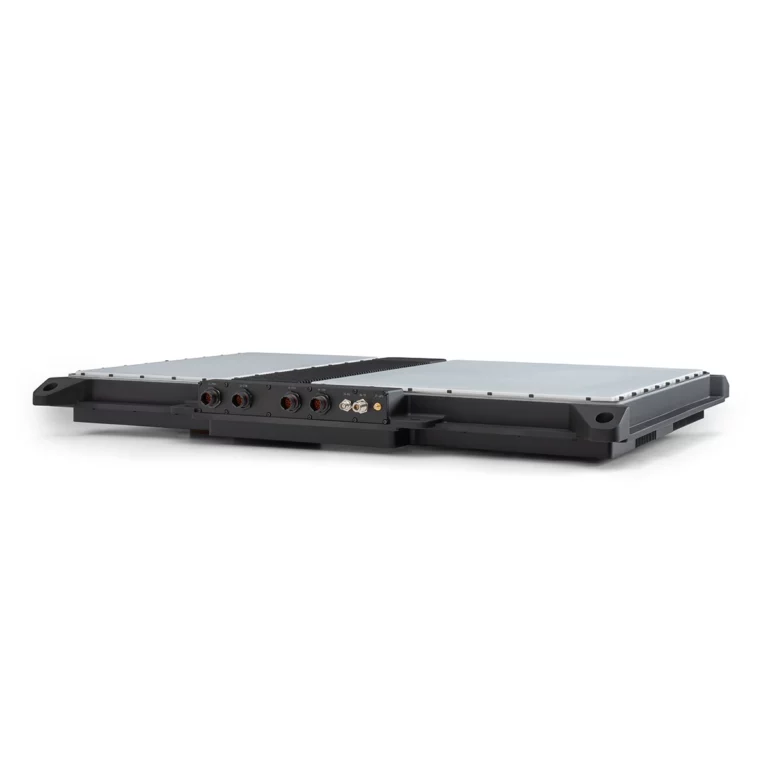

Sling Blade DUO LM Ku (land and maritime) terminal is low profile, fully
electronically steered antenna (ESA) with no moving parts. It provides a low
signature in a compact form and is designed for extreme environments with the
most demanding requirements. It is optimized for mobile connectivity, with a
short acquisition time, allowing highdynamic tracking in harsh environments.
Supports transmit & receive for any GEO and LEO satellite, enabling switch
from GEO to LEO satellites in milliseconds and near seamless satellite coverage
anywhere, anytime.
A simple and intuitive solution that provides
multi-orbit SATCOM services, with the ability
to blend and transfer network traffic
seamlessly between high-capacity LEO (in KU
only), MEO (in Ka only), and GEO satellite
constellations.
Integrated terminals include everything needed
for operation: modem, Antenna Management Unit
(AMU), tracking sensors, downconverter, and a full
RF front end.
Since there are no moving parts, calibration
is not required therefore providing
long-term reliability and lower maintenance
costs.
Extremely short transition time.
The significance of fiber-like connectivity
is a major step forward for high-data-rate
applications requiring communications
mobility.
Supports Global coverage networks, like
Intelsat in GEO, and other LEO networks, for near
seamless satellite coverage anywhere,
anytime.
The easy installation and integration of
the terminals, allows operators to
complete the process without the need
for time-consuming and costly visits of
technicians.
| RF Performance | Ku Band |
|---|---|
| Tx Frequency | 13.75-14.5 GHz |
| Rx Frequency | 10.7-12.75 GHz |
| Polarization | Software configurable LHCP, RHCP, V/H Linear |
| Max EIRP | 48 dBW (P1dB) |
| Max G/T | 14 dB / K |
| Azimuth | Electrical coverage over full 360° |
| Elevation | Electronically beam steering from 10° to 90° |
| Control Technique | Combined IMU / RSSI / GPS (Optional) |
| Velocity Azimuth | Fully Electronic 360° |
| Initial Acquisition Time | <30 sec |
| Re-Acquisition time | <100ms |
| Management | Ethernet |
| Power Input | 24-48 [V] DC |
| Power Consumption | 600 Watt |
| Weight | 48 kg (105.8 lb.) |
| System Size (W/H/L) | 100 x 9.8 x 71.4 cm (39.3 x 3.8 x 28.1”) |
