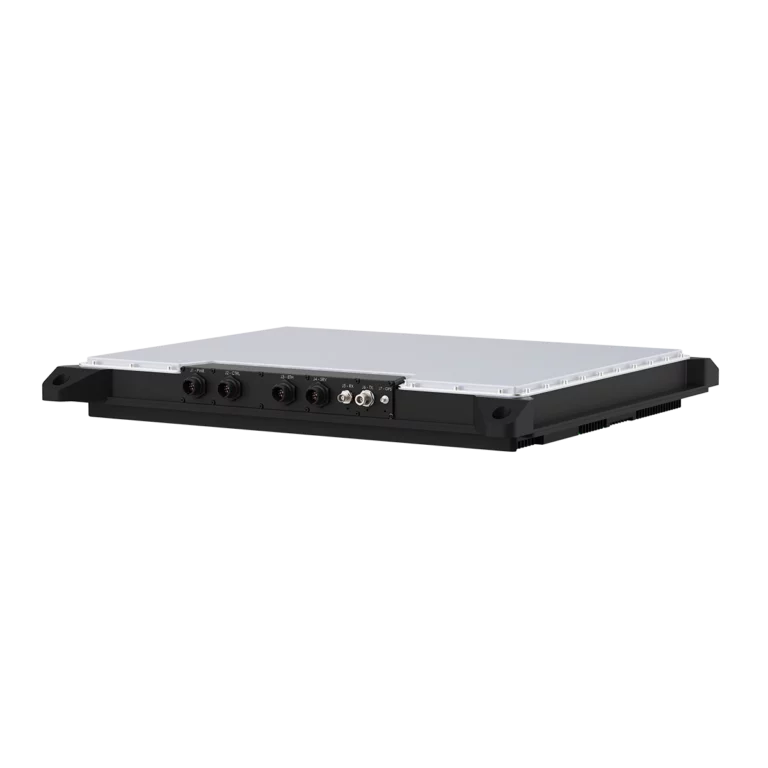

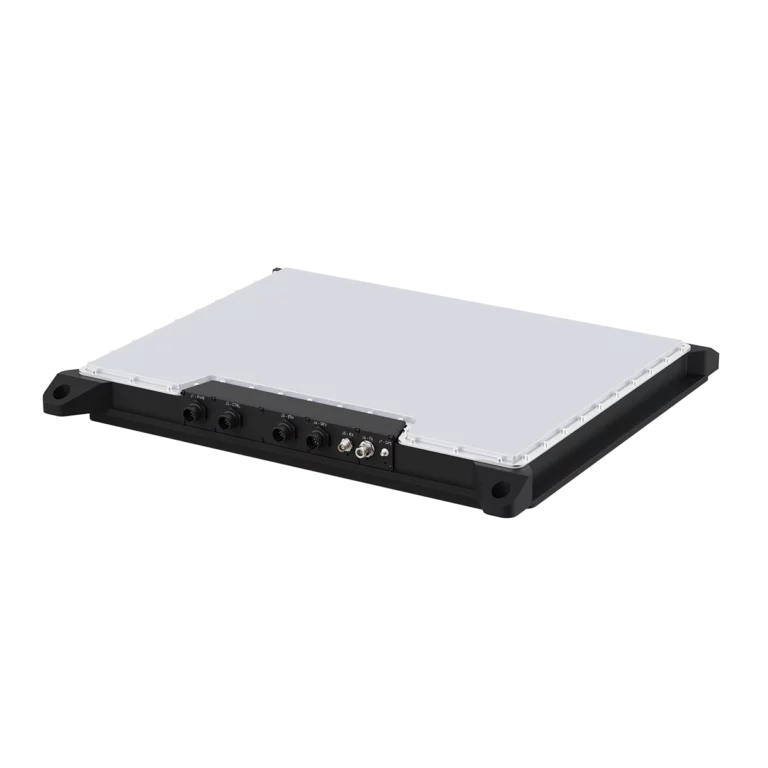

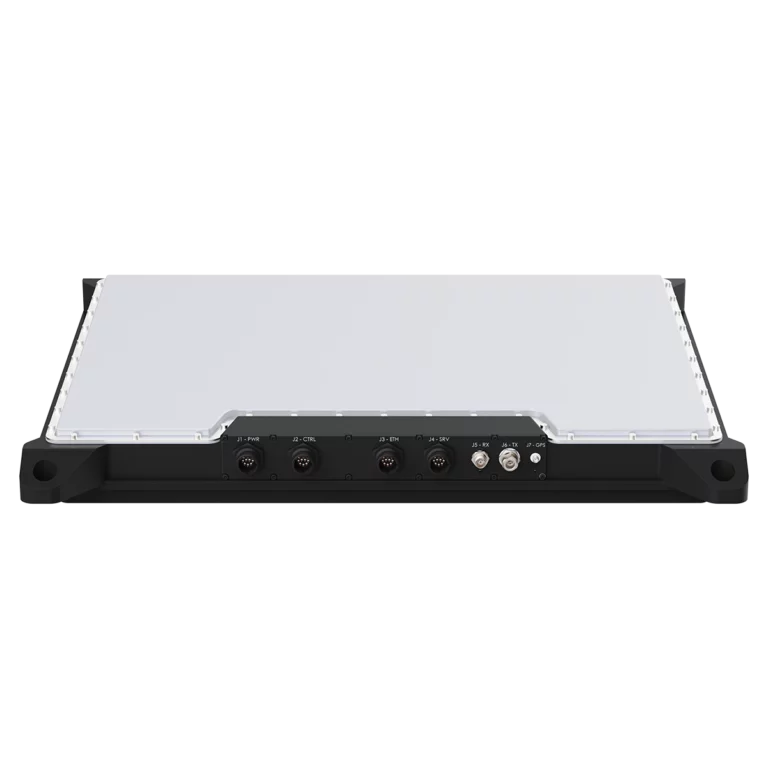

Sling Blade SOLO LM (land and maritime) Ku terminal is low profile, fully
electronically steered antenna (ESA) with no moving parts. It provides a low
signature in a compact form and is designed for extreme environments with the
most demanding requirements. It is optimized for mobile connectivity, with a
short acquisition time, allowing highdynamic tracking in harsh environments.
Sling Blade SOLO LM Ku is tailored for high-performance connectivity with Low
Earth Orbit (LEO) satellite constellations. Focused on leveraging LEO networks,
It delivers high-speed, real-time data transmission in demanding environments.
With its lightweight, compact design and advanced tracking.
Sling Blade SOLO LM Ku is modem agnostic and supports the use of any
external modem, including connections to regional GEO networks, giving
operators flexibility in network selection and system configuration.
A simple and intuitive solution that provides
multi-orbit SATCOM services, with the ability
to blend and transfer network traffic
seamlessly between high-capacity LEO (in KU
only), MEO (in Ka only), and GEO satellite
constellations.
Integrated terminals include everything needed
for operation: modem, Antenna Management Unit
(AMU), tracking sensors, downconverter, and a full
RF front end.
Since there are no moving parts, calibration
is not required therefore providing
long-term reliability and lower maintenance
costs.
Extremely short transition time.
The significance of fiber-like connectivity
is a major step forward for high-data-rate
applications requiring communications
mobility.
Supports Global coverage networks, like
Intelsat in GEO, and other LEO networks, for near
seamless satellite coverage anywhere,
anytime.
The easy installation and integration of
the terminals, allows operators to
complete the process without the need
for time-consuming and costly visits of
technicians.
| RF Performance | Ku Band |
|---|---|
| Tx Frequency | 13.75-14.5 GHz |
| Rx Frequency | 10.7-12.75 GHz |
| Polarization | V/H Linear/Circular SW controlled |
| Max EIRP | 46 dbW (P1dB) |
| Max G/T | 11.5 dB / K |
| Azimuth | Electrical coverage over full 360° |
| Elevation | Electronically beam steering from 15° to 90° |
| Control Technique | Combined IMU / RSSI / GPS (Optional) |
| Velocity Azimuth | Continues coverage over full 360° |
| Initial Acquisition Time | <30 sec |
| Re-Acquisition time | <100ms |
| Management | Ethernet, USB, RS232 |
| Power Input | 28-50 [V] DC |
| Power Consumption | 580 Watt |
| Weight | 33 kg (72.7 lb.) |
| System Size (W/H/L) | 77.3 x 8.1 x 63 cm (30.6 x 3.2 x 24.4”) |
